Tuesday, March 10, 2020

Millimeter Wave is About Capacity

"The driving force behind 5G millimeter wave is fairly simple," says Joe Madden, Mobile Experts chief analyst . "It's the need for more capacity.”

And there is only so much capacity to be wrung from low-band networks, for reasons of physics. signals at higher frequencies inherently can carry more data.

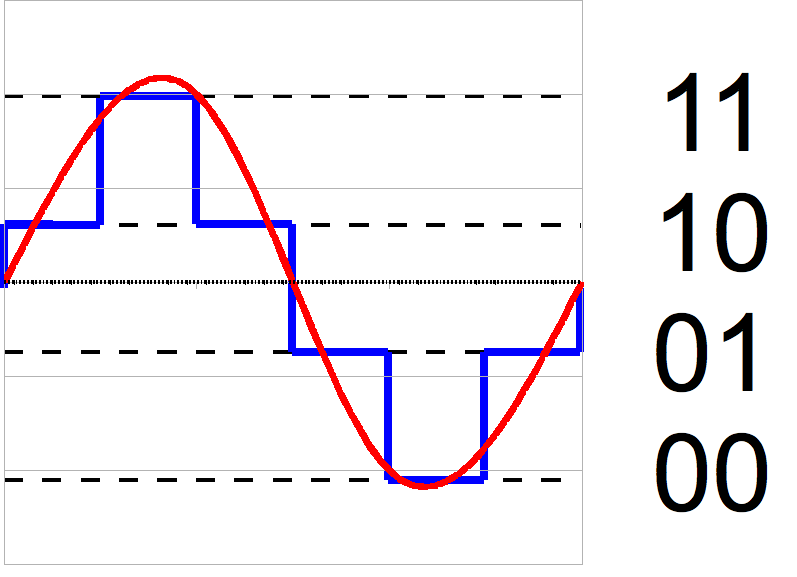

As a simple example, assume that every zero crossing of any wave represents the opportunity to code a bit (one or zero). Using a very simple coding, the total amount of bits that can be represented in one second of time hinges on the number of oscillations a wave makes over that period of time.


Higher-frequency signals make more crossings, and therefore can represent more symbols. And that is why millimeter wave signals have such high bandwidth: there are simply so many more zero crossings in any unit of time, compared to lower-frequency signals (600 MHz to 800 MHz or 2-GHz, for example).

Also, channels vary in size, from 5 MHz up to perhaps 400 MHz. The wider the channel, the greater the capacity. That holds for Wi-Fi as well as mobile networks. This example using Wi-Fi illustrates the principle. Wider channels support more bandwidth because there are fewer guard bands between discrete channels.


Attribute
Low Bands for 5G
Band 41
C-Band
mmWave
Frequency
600 MHz
(T-Mobile)
700-1000 MHz (ATT/Verizon)
2.49-2.69GHz
(Sprint)
3.7-4.2 GHz

24-39 GHz
Channel
20MHz
20MHz
60MHz
100MHz
400MHz
Typical Rate
40-80Mbps
40-80Mbps
100Mbps+
250-500Mbps
800Mbps+
Available
Now
Now
Now
2021~2022
Now
Coverage
Wide area
Wide area
Wide area
Wide area
Small area

At 600 MHz, 700 MHz and 800 MHz, mobile channels can range from 5 MHz to 20 MHz. In the mid-band region, channels might range from 60 MHz to 100 MHz. In the millimeter wave region, channels can reach 400 MHz. As you can see, capacity and frequency are directly related.
